Symmedian

Qualified name: manimextra.geometry.Symmedian

class manimextra.geometry.Symmedian(A, B, C, **kwargs)

Bases: Cevian

A class to represent a symmedian in a triangle.

Parameters:

• A (Point3DLike) – The first vertex of the triangle.

• B (Point3DLike) – The second vertex of the triangle.

• C (Point3DLike) – The third vertex of the triangle

Examples

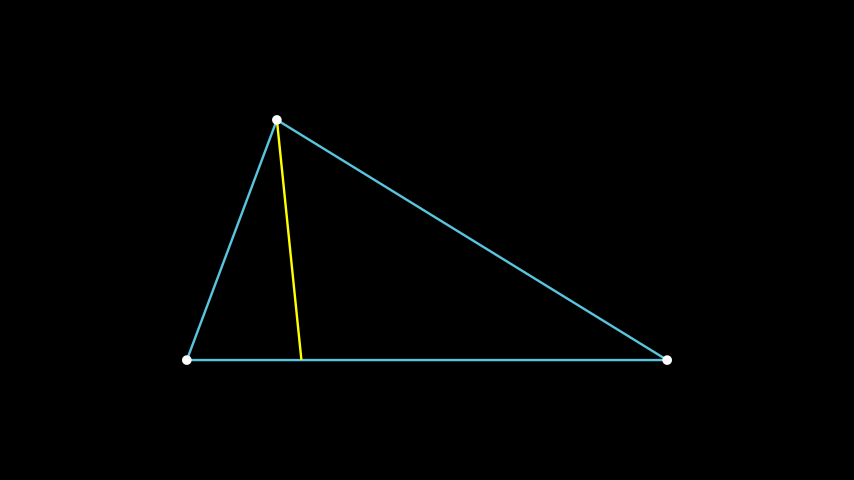

Example: SymmedianExample

from manim import *
from manimextra import *

class SymmedianExample(Scene):
    def construct(self):
        A = Dot(2 * DOWN + 4 * LEFT).set_z_index(1)
        B = Dot(2 * UP + 2.5 * LEFT).set_z_index(1)
        C = Dot(2 * DOWN + 4 * RIGHT)

        a = Line(B, C, color=BLUE)
        b = Line(A, C, color=BLUE)
        c = Line(A, B, color=BLUE)

        symmedian = Symmedian(A, B, C, color=YELLOW)
        self.add(A, B, C, a, b, c, symmedian)

Methods

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.

_original__init__(A, B, C, **kwargs)

Initialize self. See help(type(self)) for accurate signature.
