Bracket¶

Qualified name: manimextra.algebra.Bracket

class manimextra.algebra.Bracket(mobject, direction=array([0., -1., 0.]), buff=0.2, **kwargs)¶

Bases: VMobjectFromSVGPath

Analogue of manim’s Brace, but for a rectangle.

Examples

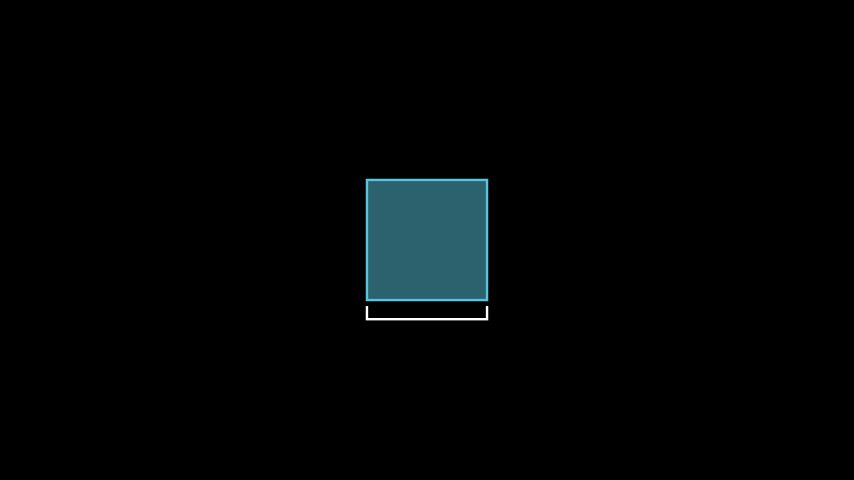

Example: BracketExample ¶

from manim import *
from manimextra import *

class BracketExample(Scene):
    def construct(self):
        sq = Square(color=BLUE, fill_opacity=0.5)
        bracket = Bracket(sq, buff=0.1)
        self.add(sq, bracket)

Methods

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.

_original__init__(mobject, direction=array([0., -1., 0.]), buff=0.2, **kwargs)¶: Initialize self. See help(type(self)) for accurate signature.
