PerpendicularBisector

Qualified name: manimextra.geometry.PerpendicularBisector

class manimextra.geometry.PerpendicularBisector(line, length=1, **kwargs)

Bases: Line

A class to represent a perpendicular bisector to a line.

Parameters:

• line (Line) – The line to which the perpendicular bisector is drawn.

• length (float, optional) – The length of the perpendicular bisector, by default 1.0.

Examples

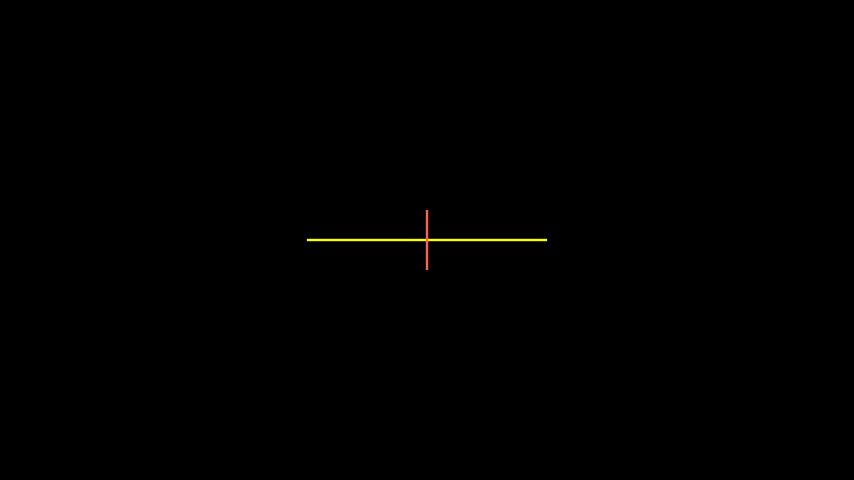

Example: PerpendicularBisectorExample

from manim import *
from manimextra import *

class PerpendicularBisectorExample(Scene):
    def construct(self):
        line = Line(2 * LEFT, 2 * RIGHT, color=YELLOW)
        perpendicular = PerpendicularBisector(line, color=RED)
        self.add(line, perpendicular)

Methods

get_angles

Get all the angles formed by the perpendicular bisector.

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.

_original__init__(line, length=1, **kwargs)

Initialize self. See help(type(self)) for accurate signature.

get_angles(**kwargs)

Get all the angles formed by the perpendicular bisector.

Parameters:

kwargs

Returns:
