BracketBetweenPoints

Qualified name: manimextra.algebra.BracketBetweenPoints

class manimextra.algebra.BracketBetweenPoints(point_1=array([-1., 0., 0.]), point_2=array([1., 0., 0.]), direction=array([0., 0., 0.]), **kwargs)

Bases: Bracket

Class that creates a bracket between two points.

Parameters:

• point_1 (Point3DLike, optional) – The first point, by default ORIGIN

• point_2 (Point3DLike, optional) – The second point, by default ORIGIN

• direction (Point3DLike, optional) – The direction of the bracket, by default ORIGIN

Examples

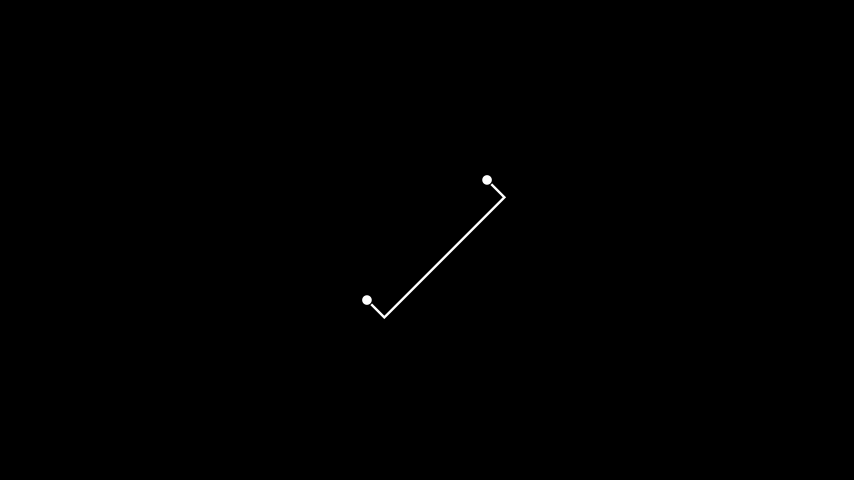

Example: BracketBetweenPointsExample

from manim import *
from manimextra import *

class BracketBetweenPointsExample(Scene):
    def construct(self):
        A = Dot(LEFT + DOWN)
        B = Dot(RIGHT + UP)
        bracket = BracketBetweenPoints(A, B, buff=0.1)
        self.add(A, B, bracket)

Methods

Attributes

animate	Used to animate the application of any method of self.
animation_overrides
color
depth	The depth of the mobject.
fill_color	If there are multiple colors (for gradient) this returns the first one
height	The height of the mobject.
n_points_per_curve
sheen_factor
stroke_color
width	The width of the mobject.

_original__init__(point_1=array([-1., 0., 0.]), point_2=array([1., 0., 0.]), direction=array([0., 0., 0.]), **kwargs)

Initialize self. See help(type(self)) for accurate signature.
