Perpendicular¶

Qualified name: manimextra.geometry.Perpendicular

class manimextra.geometry.Perpendicular(line, dot, length=1.0, rotate=False, **kwargs)¶

Bases: Line

A class to represent a perpendicular line to another line.

Parameters:

line (Line) – The line to which the perpendicular line is drawn.
dot (Point3DLike) – The point through which the perpendicular line passes.
length (float, optional) – The length of the perpendicular line, by default 1.0.
rotate (bool, optional) – Use if you want the perpendicular to be in the other direction, by default False.

Examples

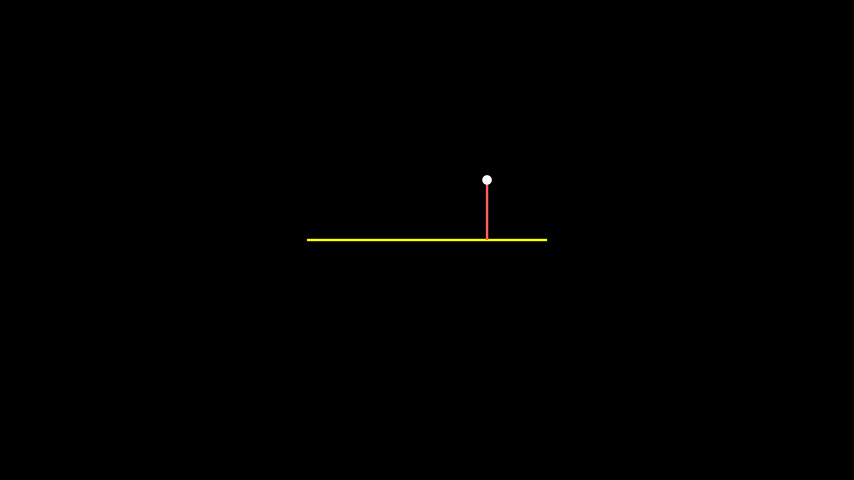

Example: PerpendicularExample ¶

from manim import *
from manimextra import *

class PerpendicularExample(Scene):
    def construct(self):
        line = Line(2 * LEFT, 2 * RIGHT, color=YELLOW)
        dot = Dot(RIGHT + UP)
        perpendicular = Perpendicular(line, dot, color=RED)
        self.add(line, dot, perpendicular)

Methods

`get_angles`
`get_foot`
`get_line`
`get_vertex`

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.

_original__init__(line, dot, length=1.0, rotate=False, **kwargs)¶: Initialize self. See help(type(self)) for accurate signature.
