Median¶

Qualified name: manimextra.geometry.Median

class manimextra.geometry.Median(A, B, C, **kwargs)¶

Bases: Cevian

A class to represent a median in a triangle.

Parameters:

A (Point3DLike) – The first vertex of the triangle.
B (Point3DLike) – The second vertex of the triangle.
C (Point3DLike) – The third vertex of the triangle.

Examples

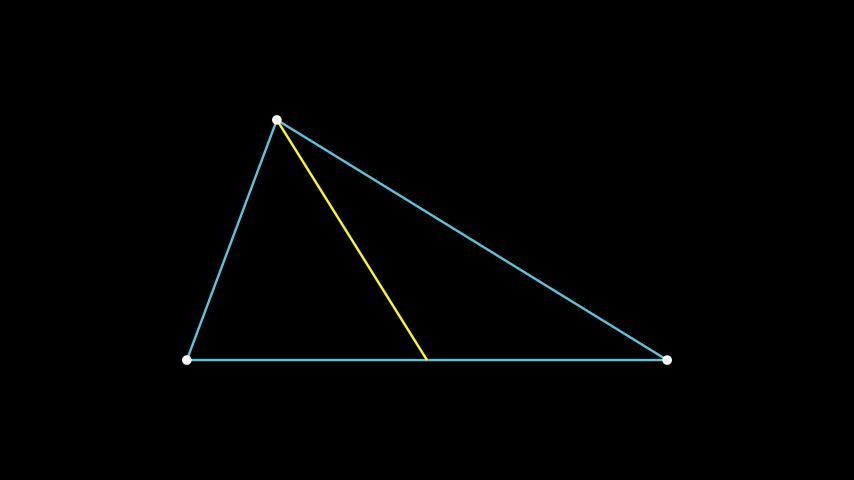

Example: MedianExample ¶

from manim import *
from manimextra import *

class MedianExample(Scene):
    def construct(self):
        A = Dot(2 * DOWN + 4 * LEFT).set_z_index(1)
        B = Dot(2 * UP + 2.5 * LEFT).set_z_index(1)
        C = Dot(2 * DOWN + 4 * RIGHT)

        a = Line(B, C, color=BLUE)
        b = Line(A, C, color=BLUE)
        c = Line(A, B, color=BLUE)

        median = Median(A, B, C, color=YELLOW)
        self.add(A, B, C, a, b, c, median)

Methods

get_equal_segments

Attributes

`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`color`
`depth`	The depth of the mobject.
`fill_color`	If there are multiple colors (for gradient) this returns the first one
`height`	The height of the mobject.
`n_points_per_curve`
`sheen_factor`
`stroke_color`
`width`	The width of the mobject.

_original__init__(A, B, C, **kwargs)¶: Initialize self. See help(type(self)) for accurate signature.
